Name: Ray Lite Balcony Solar System Basic Kit 200W~1200W
Brand: sunshare
SKU: L-200W-H-5M
Price: 164.0 EUR
Availability: InStock
Rating: 5.0 (2 reviews)

Ray Lite Balcony Solar System Basic Kit 200W~1200W 164,00€

Free 0% VAT

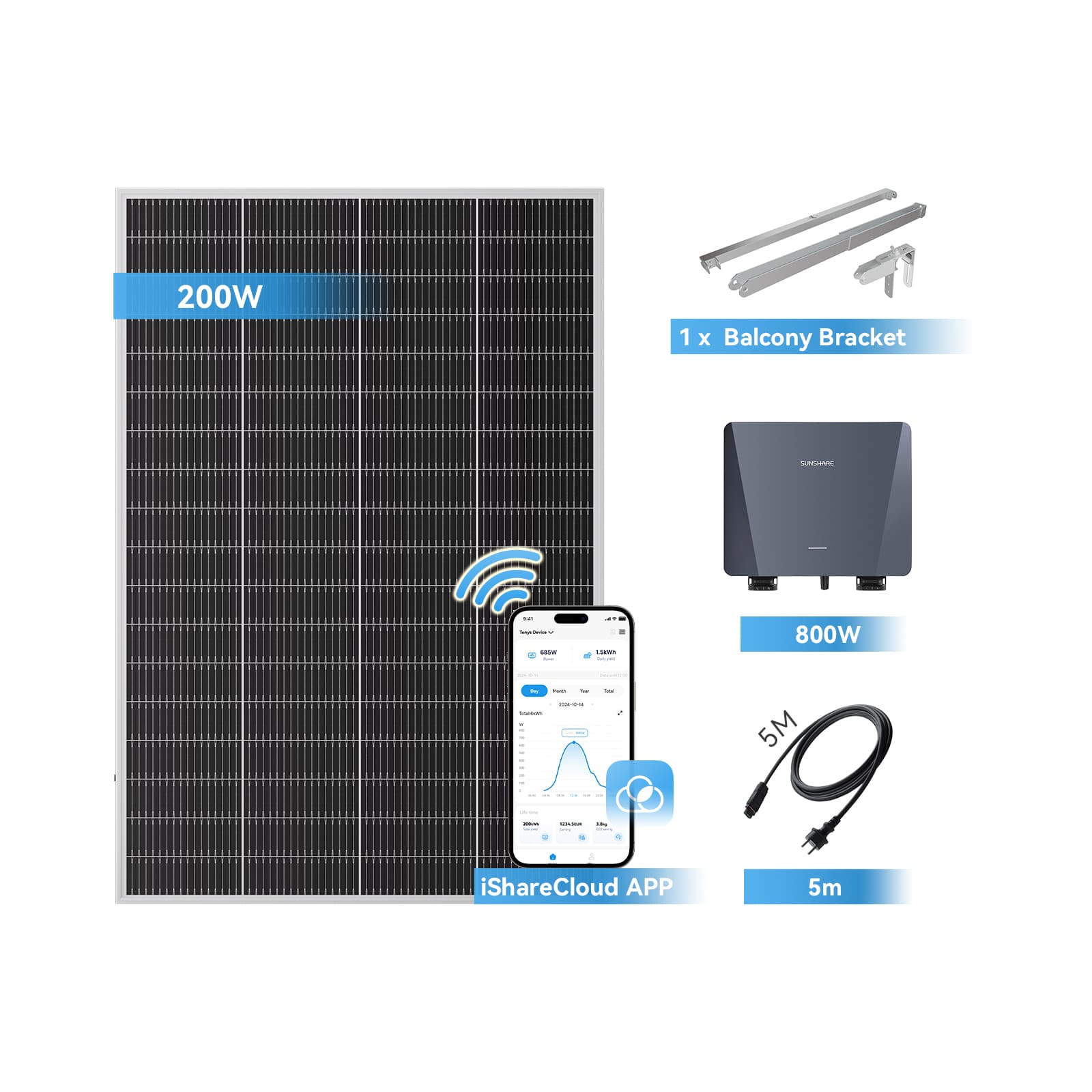

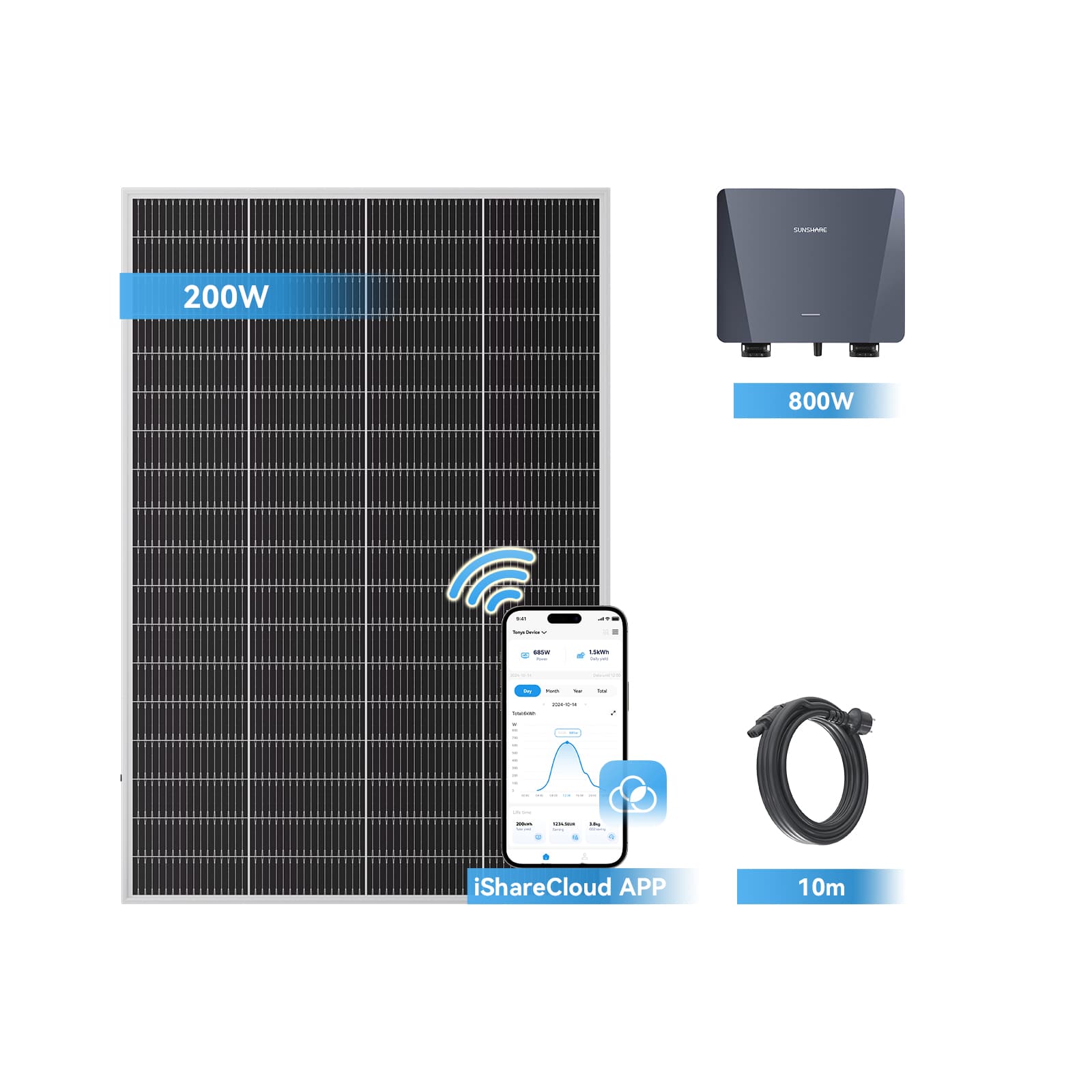

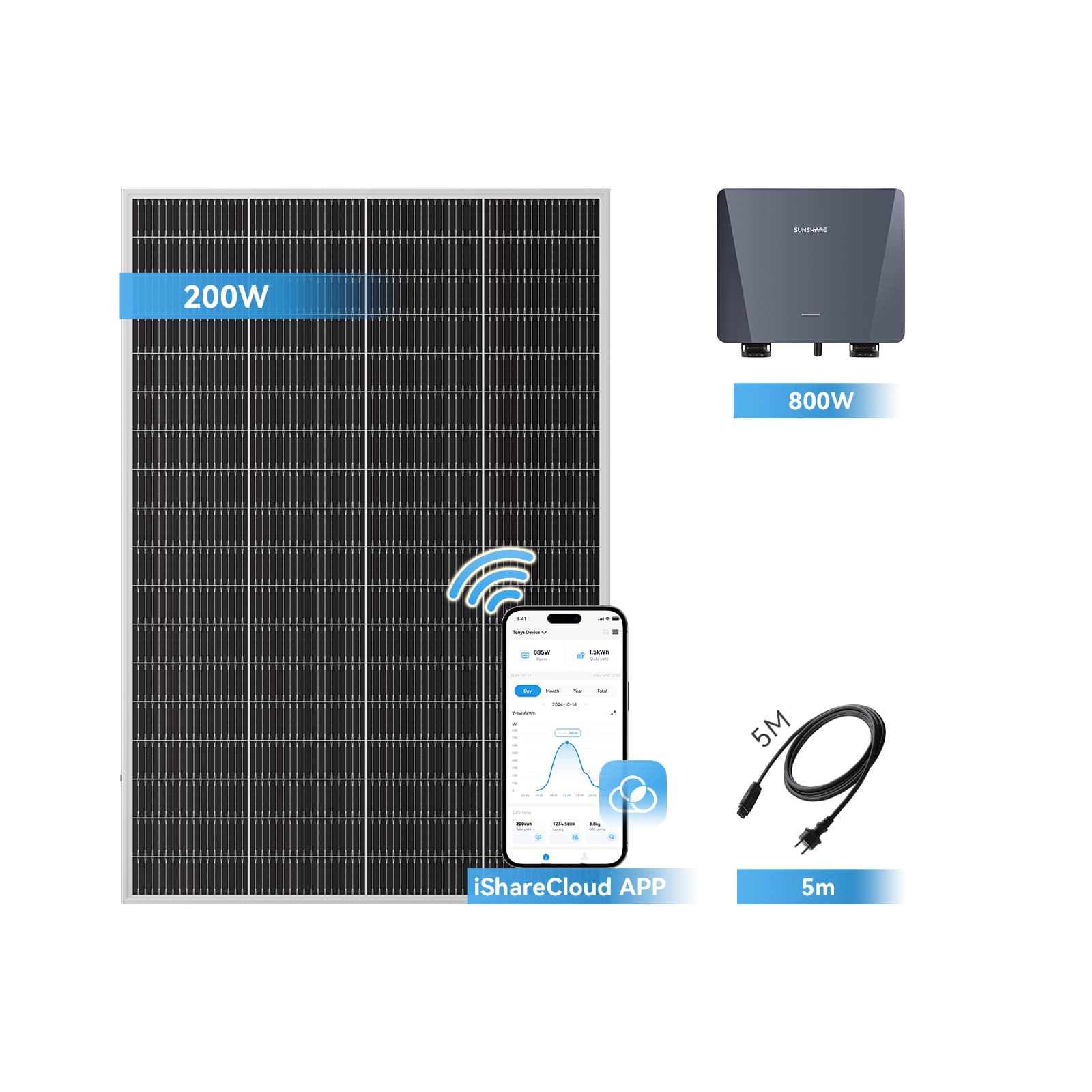

Your Scope of Delivery

1x 200W Solar Panels

1x Railing Balcony bracket

1x Microinverter

1x 5M AC Cable

1x Safety rope

Cut Your Electricity Bill by 1/3*,
Start Saving from Day One

0€

Save up to 4950€ over 30 years

Annual solar output that covers around 33% of a typical German household’s electricity needs.

+0%

Output Boost

With top-tier 25% PV efficiency, Sunshare Lite outperforms standard solar setups by delivering 30% more energy.

0 Years

≥82.2%

Sunshare Lite Series maintain ≥82.2% efficiency in 25 years, ensuring long-term, reliable performance.

0€

Save up to 4950€ over 30 years

0 Years

≥82.2%

Sunshare Lite Series maintain ≥82.2% efficiency in 25 years, ensuring long-term, reliable performance.

+0%

Output Boost

With top-tier 25% PV efficiency, Sunshare Lite outperforms standard solar setups by delivering 30% more energy.

Sunshare Ray Solar System

0 kWh/year

Traditional PV System

0 kWh/year

Sunshare Ray Solar System

0 kWh/year

Traditional PV System

0 kWh/year

*The Sunshare Ray balcony power station generates 1122 kWh of solar energy annually. Based on the average electricity consumption of a household in Germany (3,113 kWh/year) and an electricity price of €0.40/kWh, this results in annual savings of €157. Actual savings may vary depending on consumption patterns and local energy prices. 
Source: https://www.solarserver.de/pv-anlage-online-berechnen/

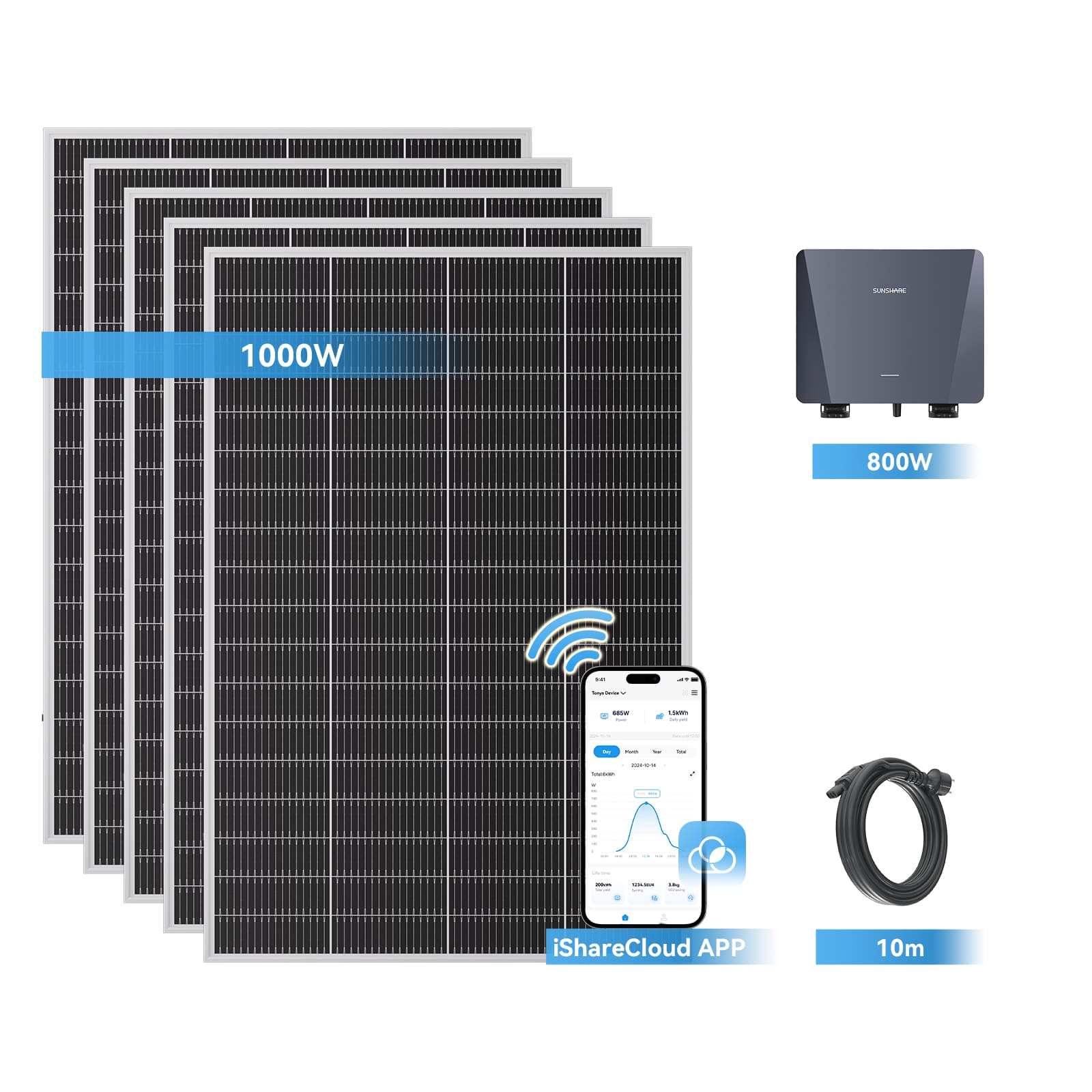

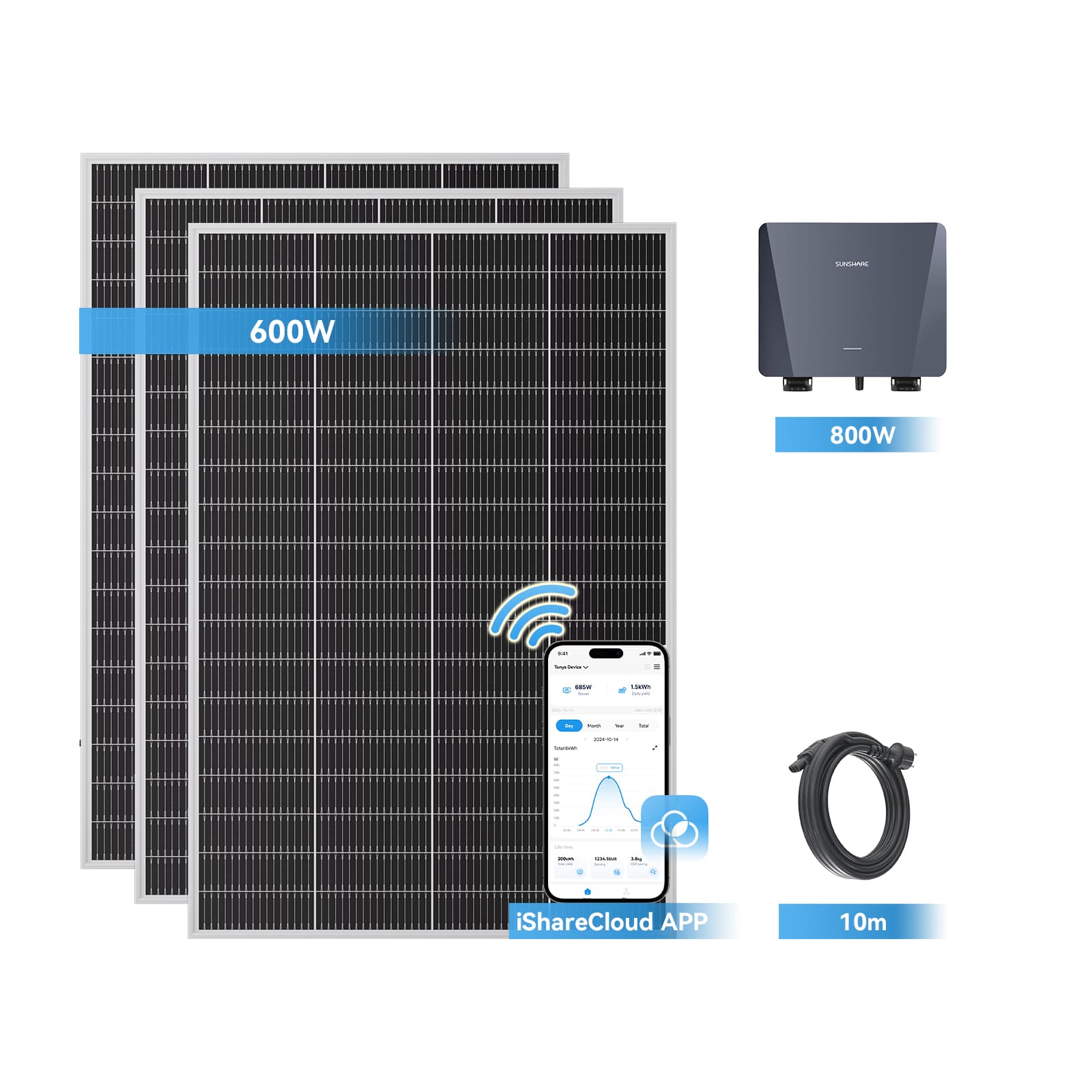

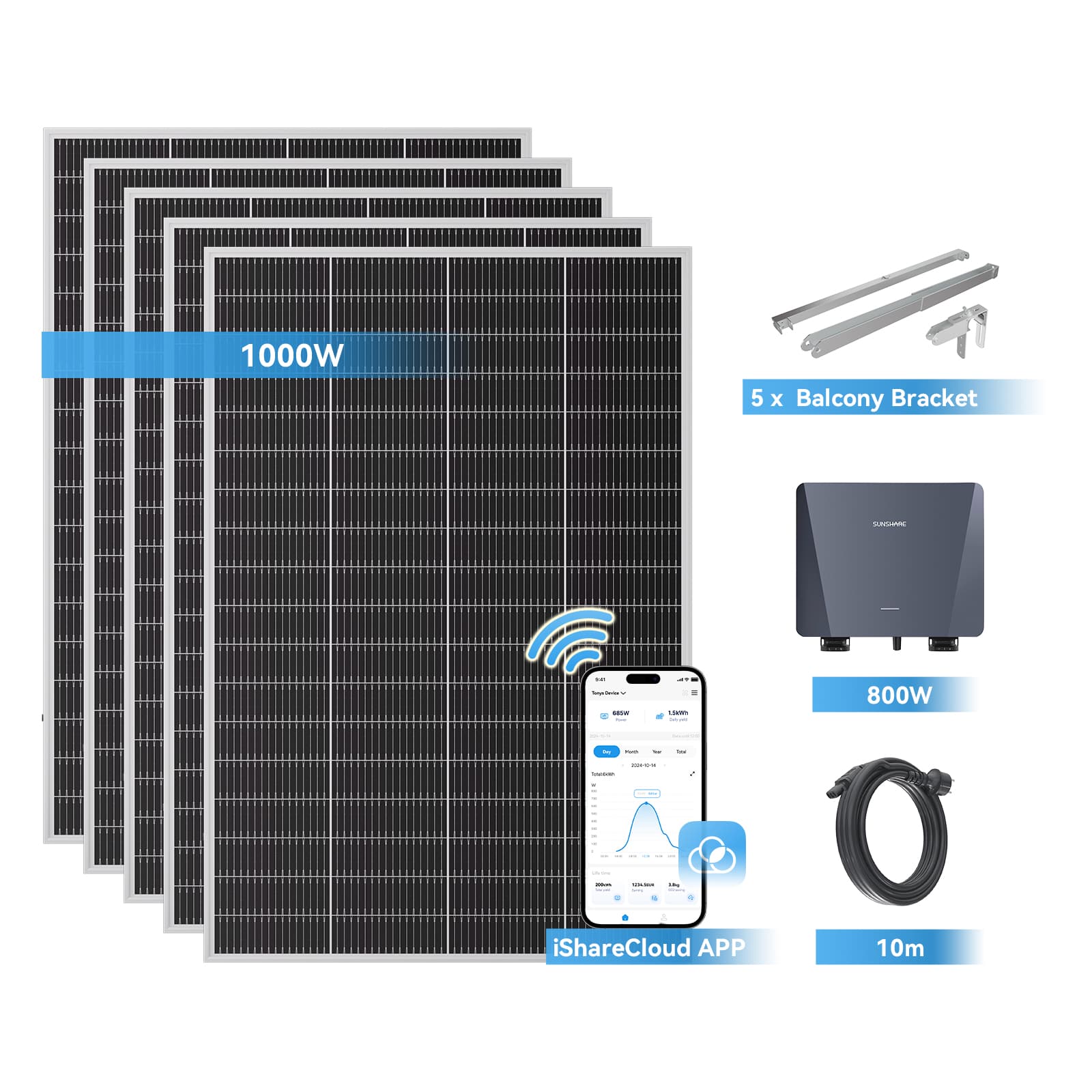

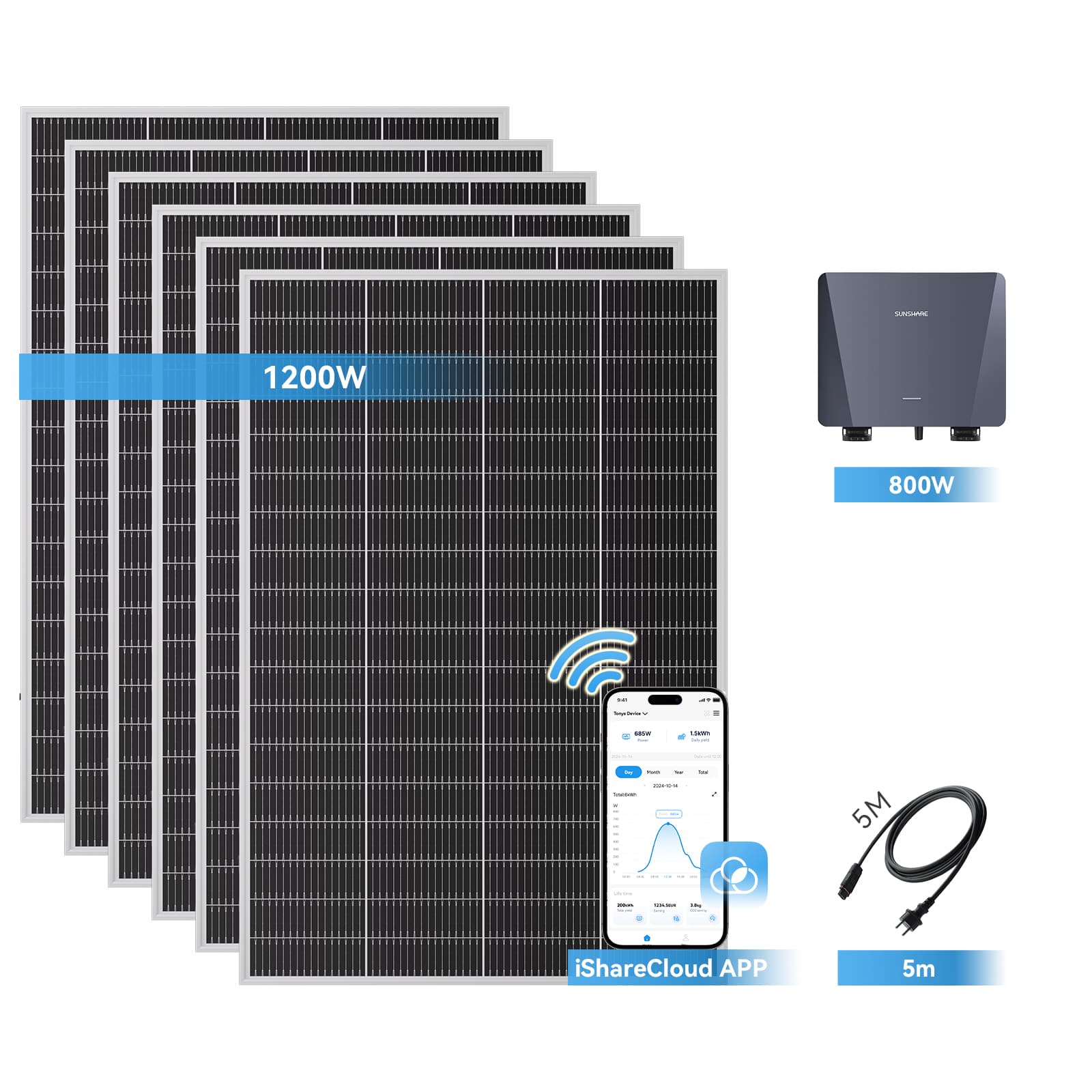

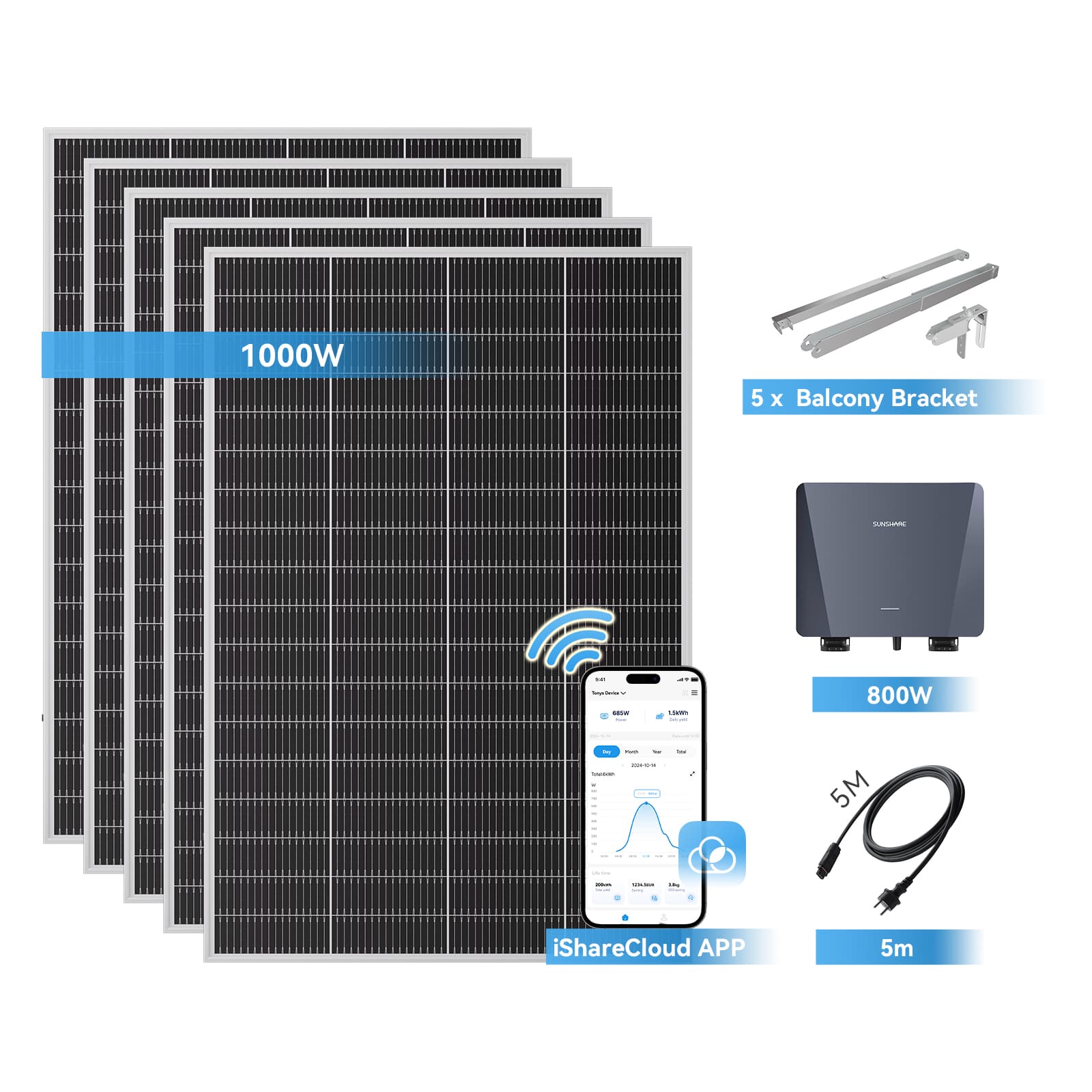

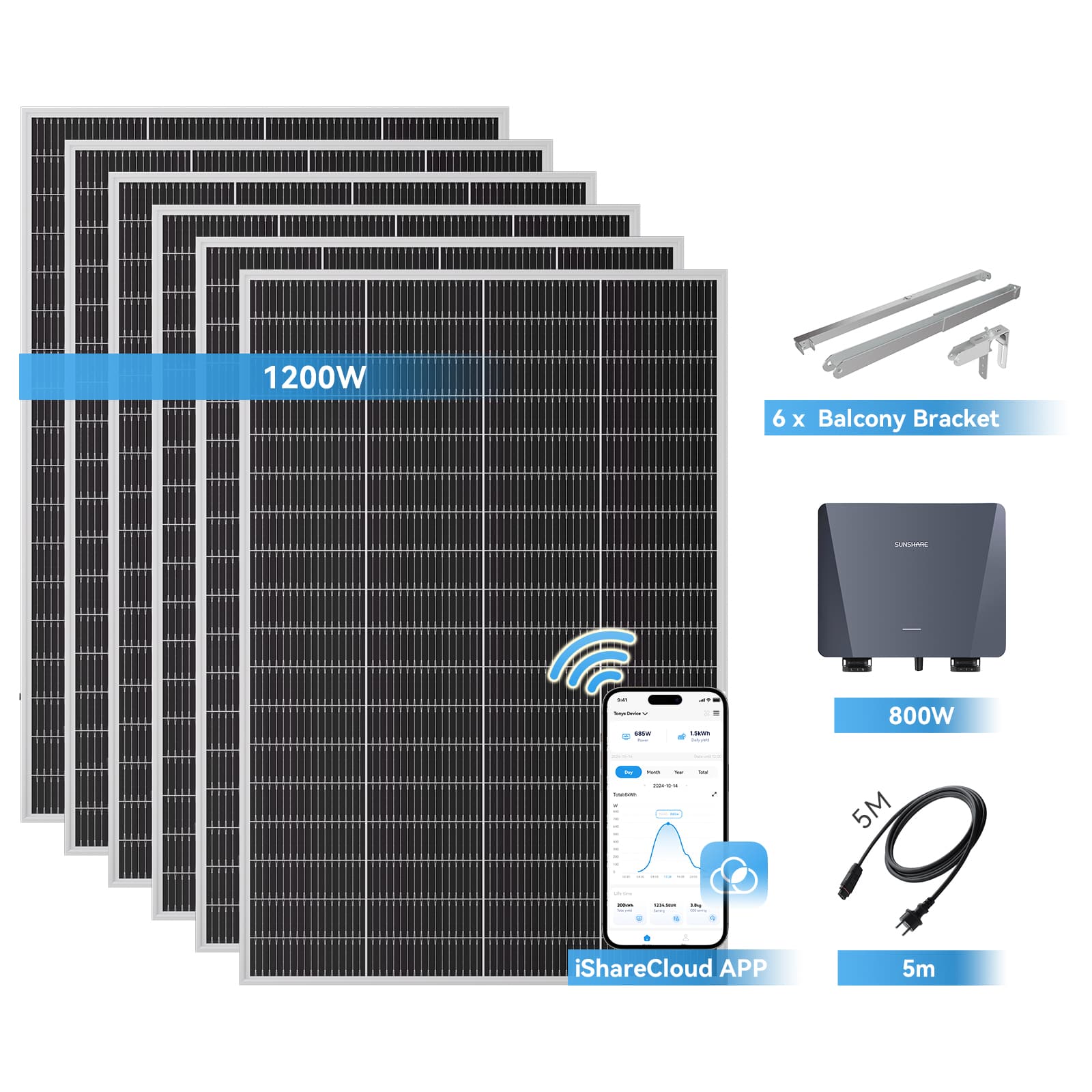

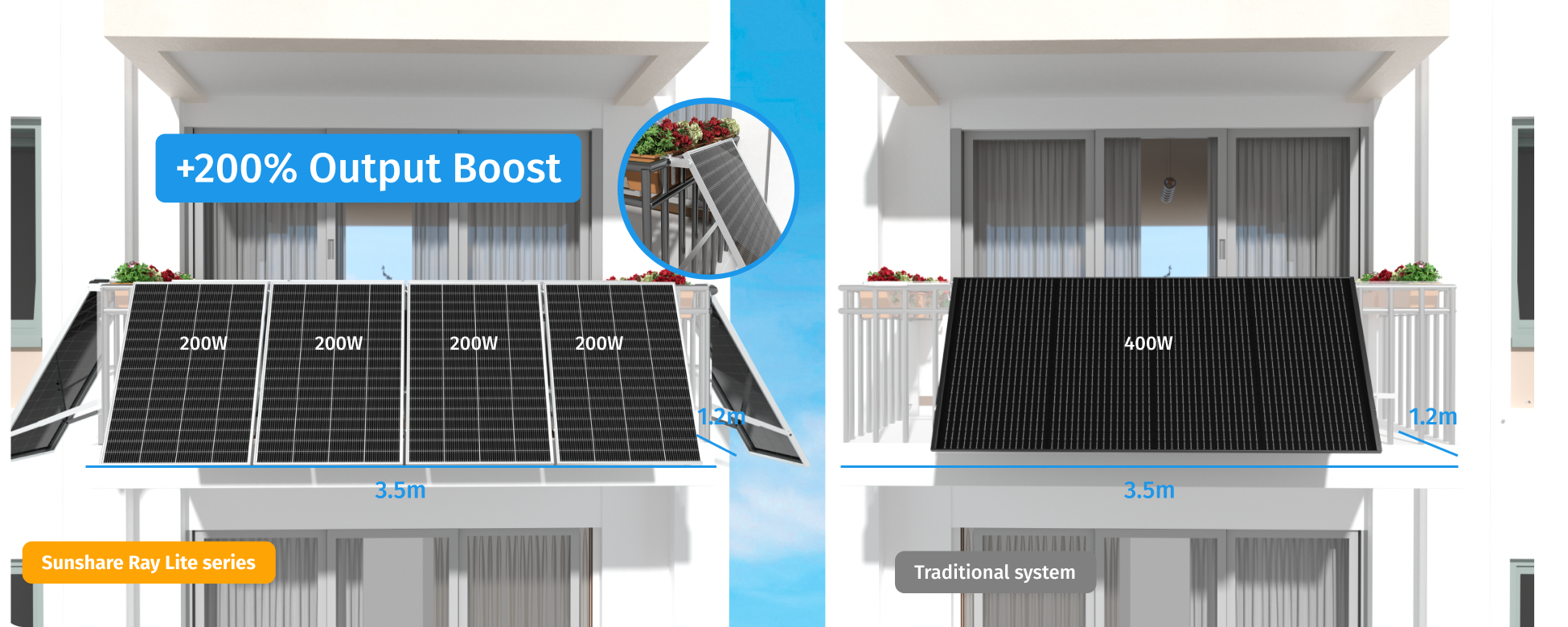

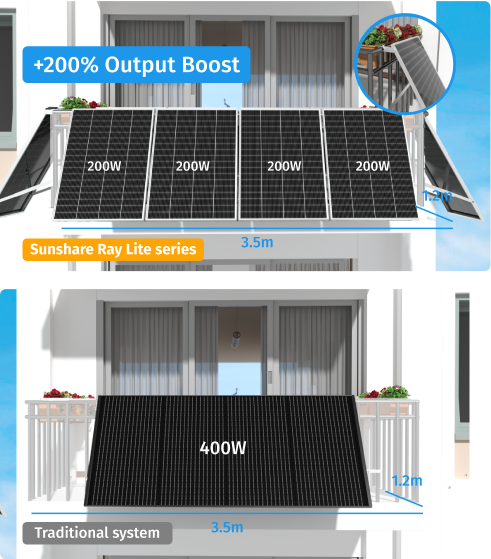

Modular Solar Panels (200W–1200W)

Scalable, Lightweight, and Fully Customizable

Unlike bulky 400W+ systems, Sunshare Ray’s modular solar panels start from just 200W, making them lighter, more flexible, and easier to install—even on narrow or irregular balconies.Whether you want a compact setup or a full-scale array, you can mix and match panels to fit your space and energy needs. Start small, expand anytime—your solar system grows with you.

95% Pre-Assembled.

Ready to Use in 5 Minutes

No drilling reqiured, 5-minute installation with just 8 screws.

*Compared with conventional brackets on the market, saves 60% of time.

Easy to carry, transport, and install for one person.

*The 200W solar panel weighs just 6.45 kg and has a compact size of 1158 mm x 766 mm—44.3% smaller than traditional panels

One click connection，enables plug-and-play installation.

*Revolutionary plug and play junction way ensures hassle-free connection.

No drilling reqiured, 5-minute installation with just 8 screws.

*Compared with conventional brackets on the market, saves 60% of time.

Easy to carry, transport, and install for one person.

*The 200W solar panel weighs just 6.45 kg and has a compact size of 1158 mm x 766 mm—44.3% smaller than traditional panels

One click connection，enables plug-and-play installation.

*Revolutionary plug and play junction way ensures hassle-free connection.

How to install

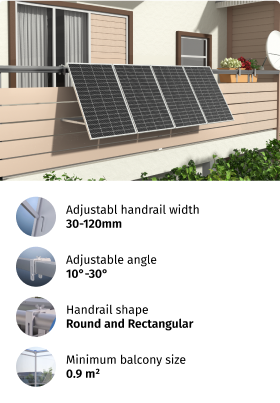

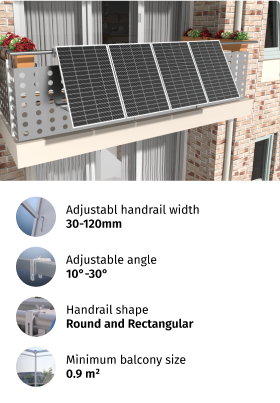

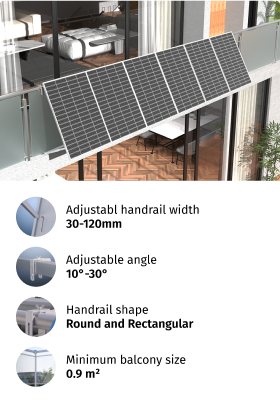

Choose the Right Sunshare Lite for Your Balcony

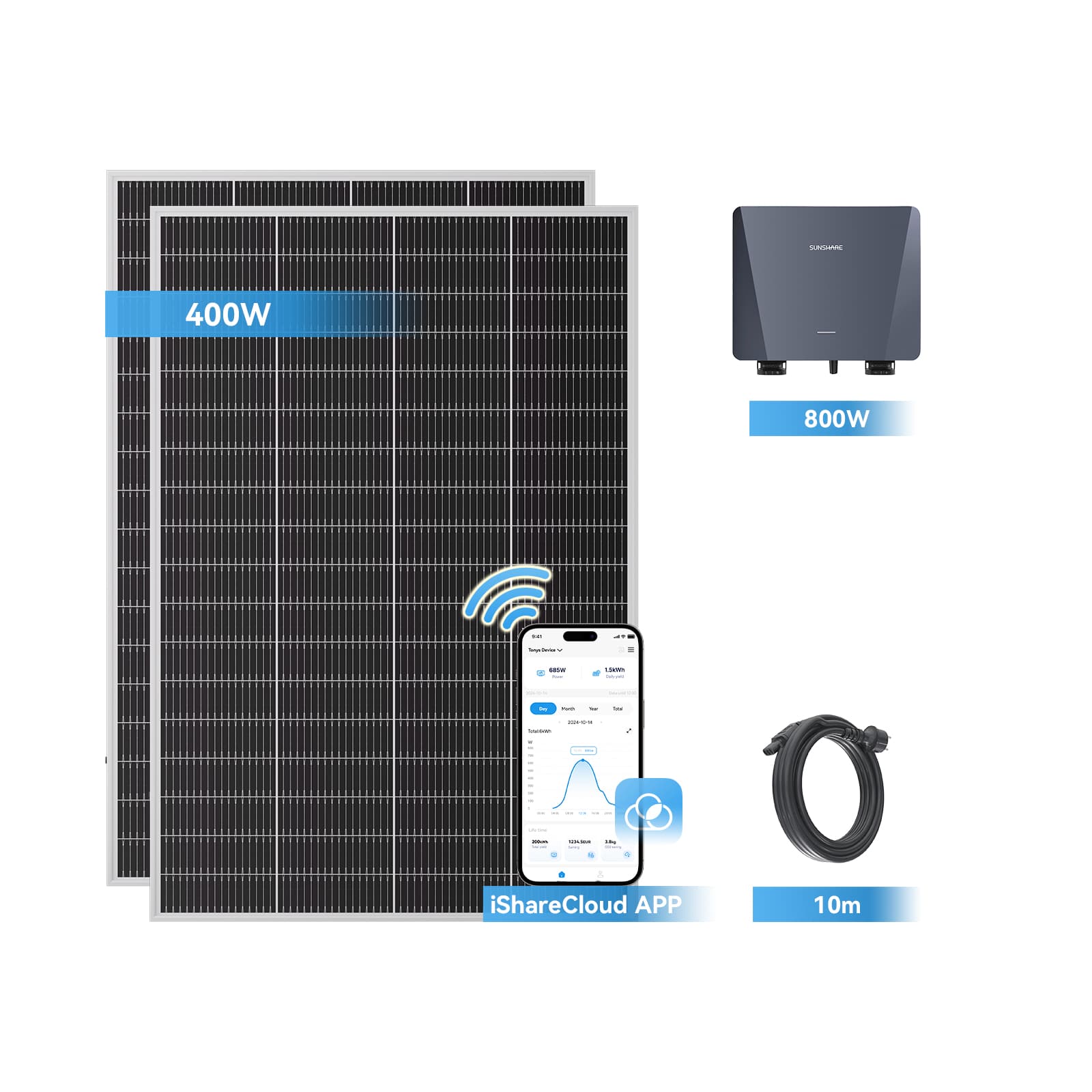

Without Bracket*Brackets need to purchased separately.

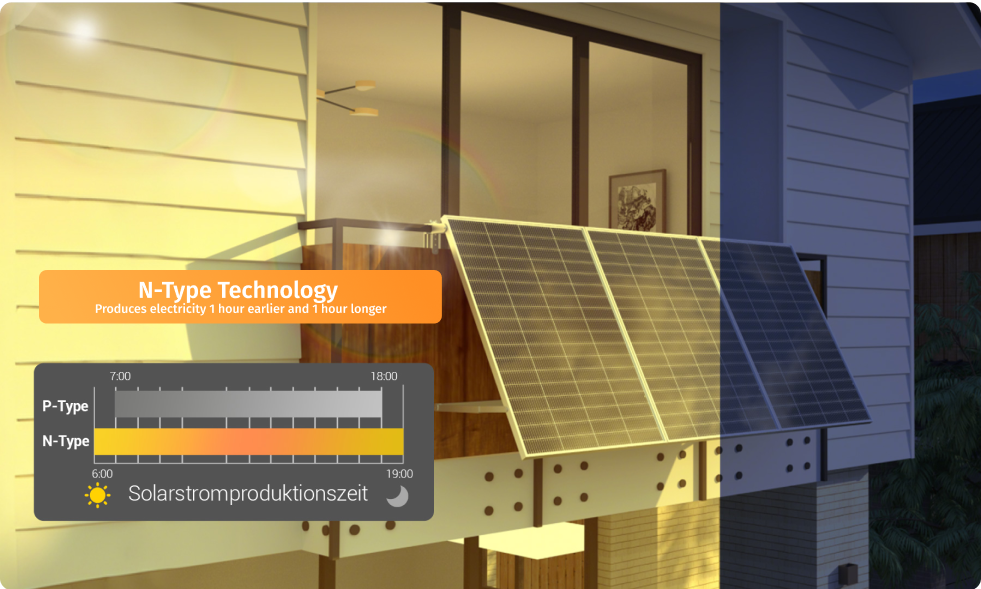

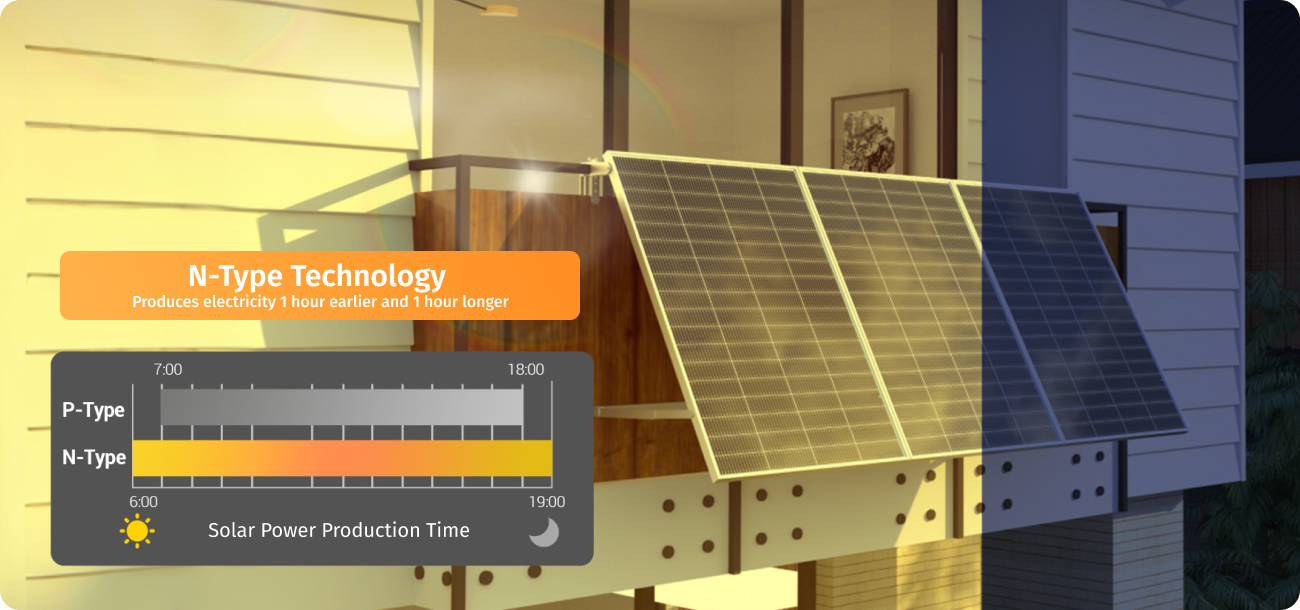

30% Output Boost in Constant Sun
with N-type Technology

Sunshare N-Type Technology achieves >25% PV efficiency—30% higher output than standard 200W panels.(The efficiency of 200W panels on the market is 19.7%) Despite its compact size, it delivers higher energy output, making it more efficient than traditional solar panels.

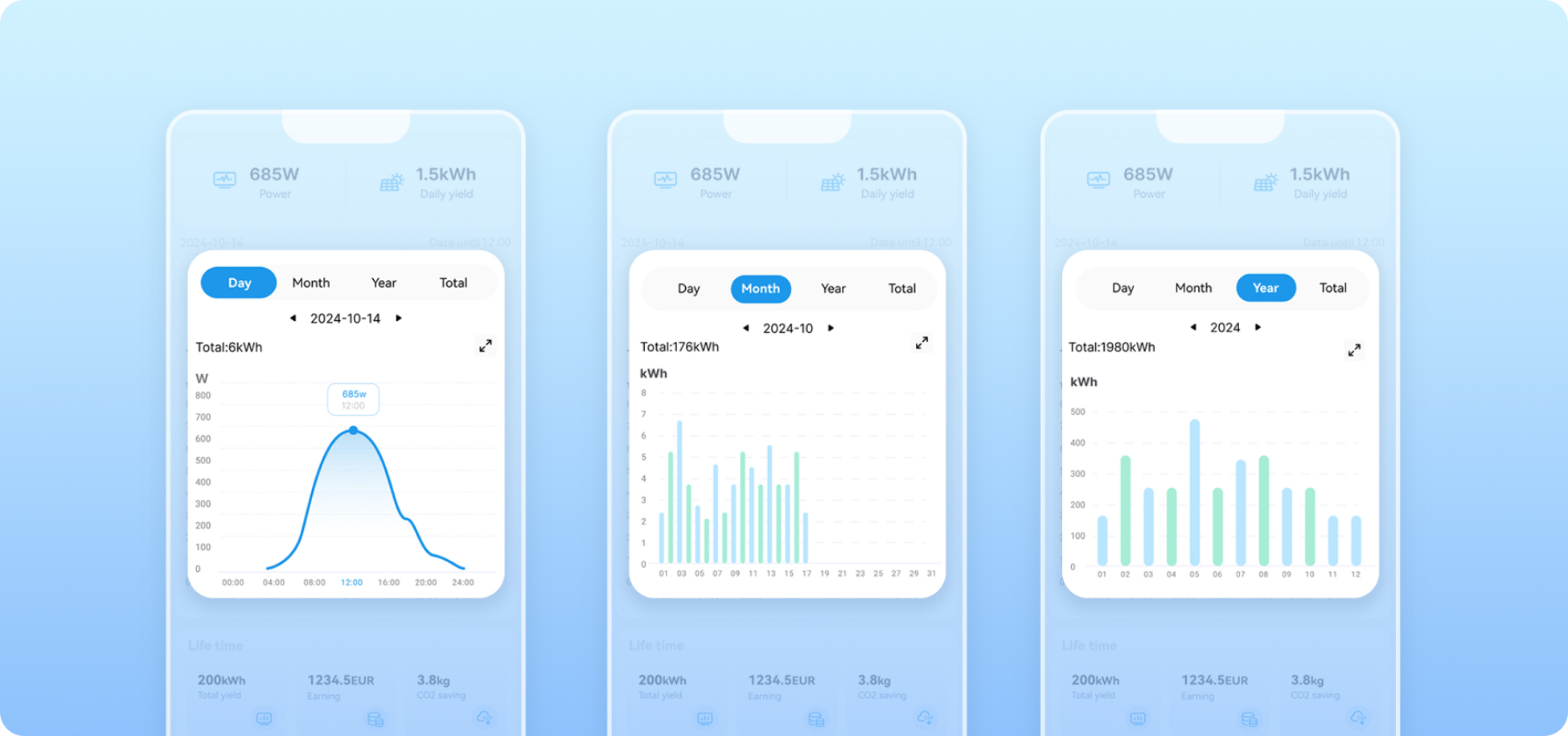

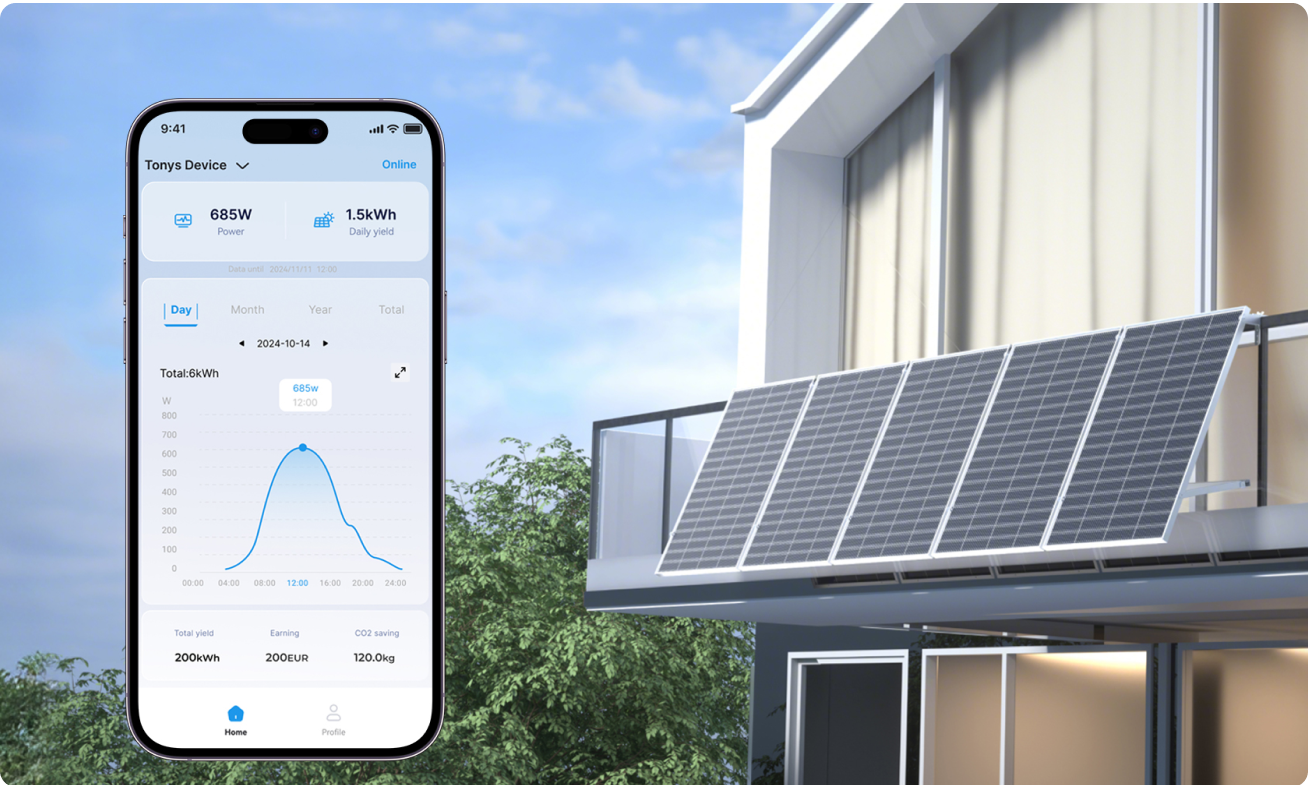

Smart App Real-time Monitoring

Set up in just 20 seconds, track your solar power generation and manage your system efficiently with real-time updates.

Suitable for Various Weather Conditions

IP67/IP68 Waterproof Protection

Sunshare Ray solar panels and cables are fully sealed with IP68-rated protection, keeping moisture and dust out—even in heavy rain.

High Temperature Resistance

With advanced N-type monocrystalline technology, Sunshare Ray offers a superior temperature coefficient of -0.29%/°C, ensuring strong performance even under intense heat.

Storm-Ready Structure

Tested to withstand up to 2400Pa wind pressure and 5400Pa snow load, the system stays stable and efficient—rain, snow, or shine.

Wind Force Tested to Level 12

Sunshare Ray is rigorously tested to withstand wind forces of up to Level 12, ensuring reliability in extreme weather conditions.

25mm Hailstone Resistance

The system is tested to endure 25mm hailstones, guaranteeing durability even in severe hailstorms.

IP67/IP68 Waterproof Protection

Sunshare Ray solar panels and cables are fully sealed with IP68-rated protection, keeping moisture and dust out—even in heavy rain.

High Temperature Resistance

With advanced N-type monocrystalline technology, Sunshare Ray offers a superior temperature coefficient of -0.29%/°C, ensuring strong performance even under intense heat.

Storm-Ready Structure

Tested to withstand up to 2400Pa wind pressure and 5400Pa snow load, the system stays stable and efficient—rain, snow, or shine.

Wind Force Tested to Level 12

Sunshare Ray is rigorously tested to withstand wind forces of up to Level 12, ensuring reliability in extreme weather conditions.

25mm Hailstone Resistance

The system is tested to endure 25mm hailstones, guaranteeing durability even in severe hailstorms.

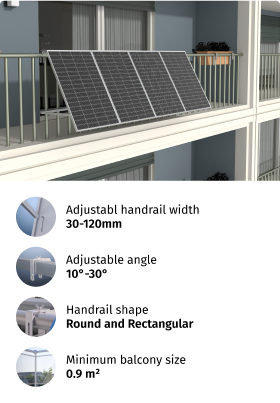

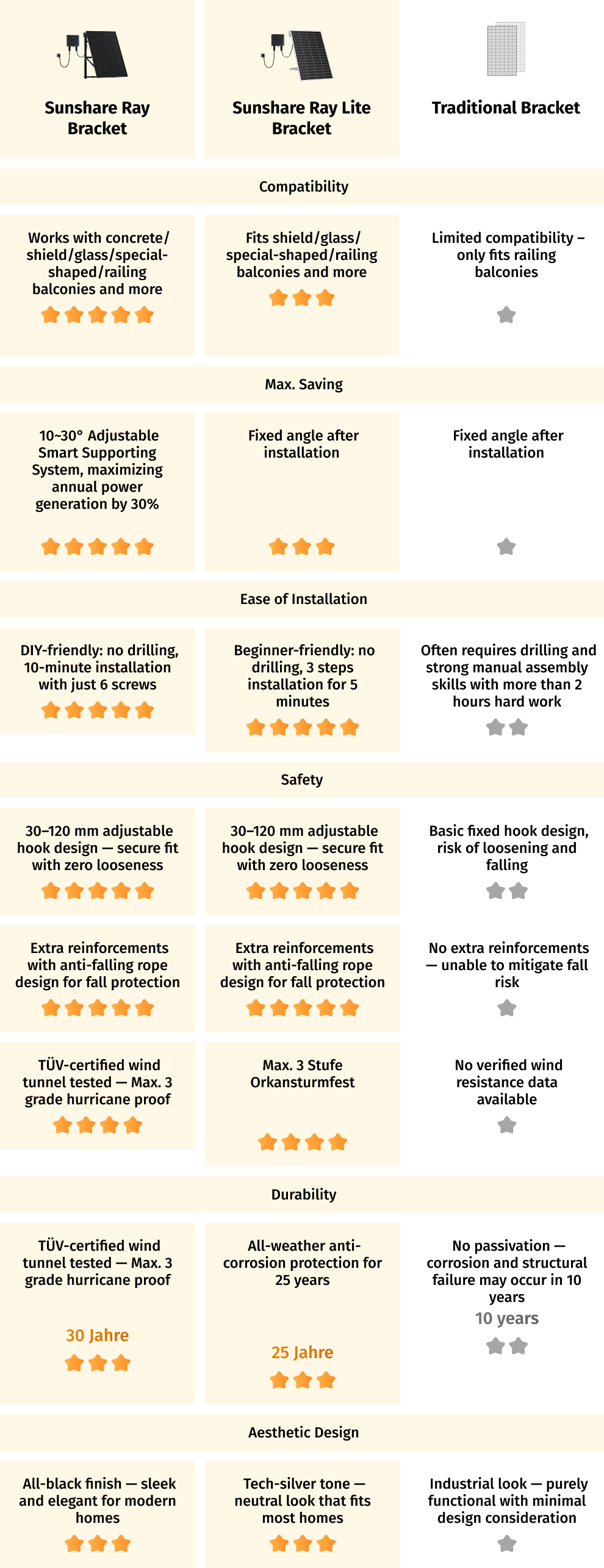

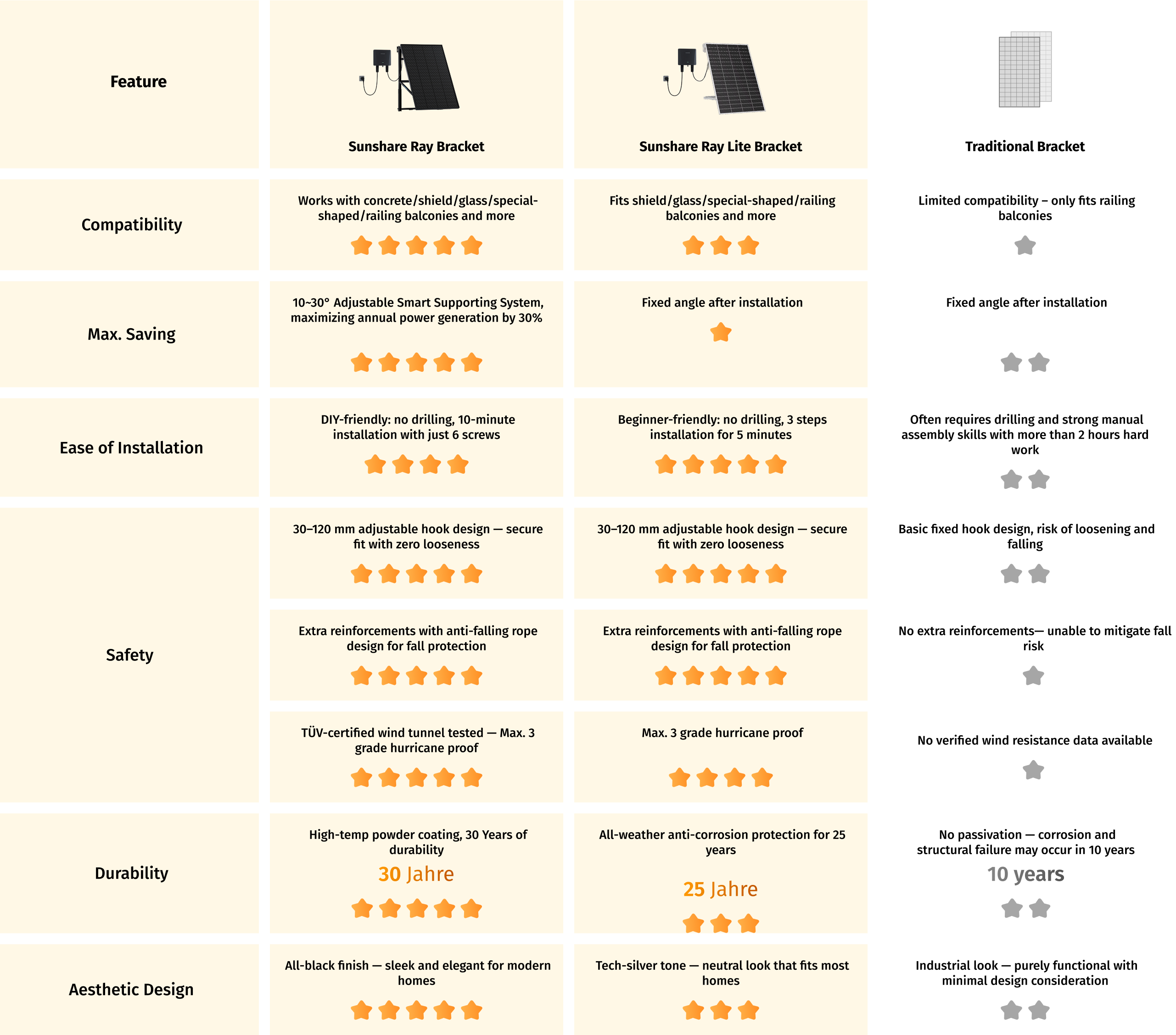

Bracket Feature Comparison

Does the balcony power plant also produce electricity in winter?

Yes, your system also generates electricity in winter. The yield at this time of year is of course lower than in the sunnier months of the year.

What requirements does my balcony have to fulfil to be able to use the balcony power plant?

Your balcony only needs to fulfil two requirements to use our solar modules. A suitable balcony railing and a socket, that's all you need.

How much of my electricity needs can I cover with a balcony power plant?

For long-term home-office or home-continuous personnel activities, the energy output by the balcony photovoltaic can be used more than 70%, maximising the product benefit. If it is a normal office worker, only refrigerators are available during the day and other fixed loads continue to consume energy, and PV modules are mostly de-energised between 10:00 and 14:00, so the total energy saving effect can be in the range of about 30% to 50%.

How much can I save on electricity costs with a SUNSHARE solar system?

From the perspective of power generation, the greater the power of the photovoltaic modules initially installed, the higher the power generation from the perspective of installation, the power generation with the installation angle is about 30% higher than that without the installation angle; in the case of home offices, the family can use 70% of the system's power generation. In addition, in non-home situations, it is usually less than 50%; The 850 Wp system is freely installed in Berlin and has an annual power generation of about 800 kWh/year, which is equivalent to a total saving of about 230 euros, less than 400 kWh and the total cost is less than 150 euros.

What kind of support will I receive from SUNSHARE during installation?

Sunshare products themselves are largely pre-assembled and less difficult to install. If customers have problems with installation, they can refer to the enclosed installation and usage instructions, and online installation videos can also help users to complete the installation.If you still encounter difficulties, our support team will help you immediately - please contact us by phone or send us a short message.

How high are the losses with a 0° (or 90°) angle directly on the balcony?

At the height of summer in particular, the sun is very high, resulting in an acute angle of incidence which leads to power losses. Depending on the situation, this can result in a 30-40% loss of output. At the same time, spring and autumn are better performing seasons due to the lower position of the sun.

Can I also use the modules on a smaller balcony?

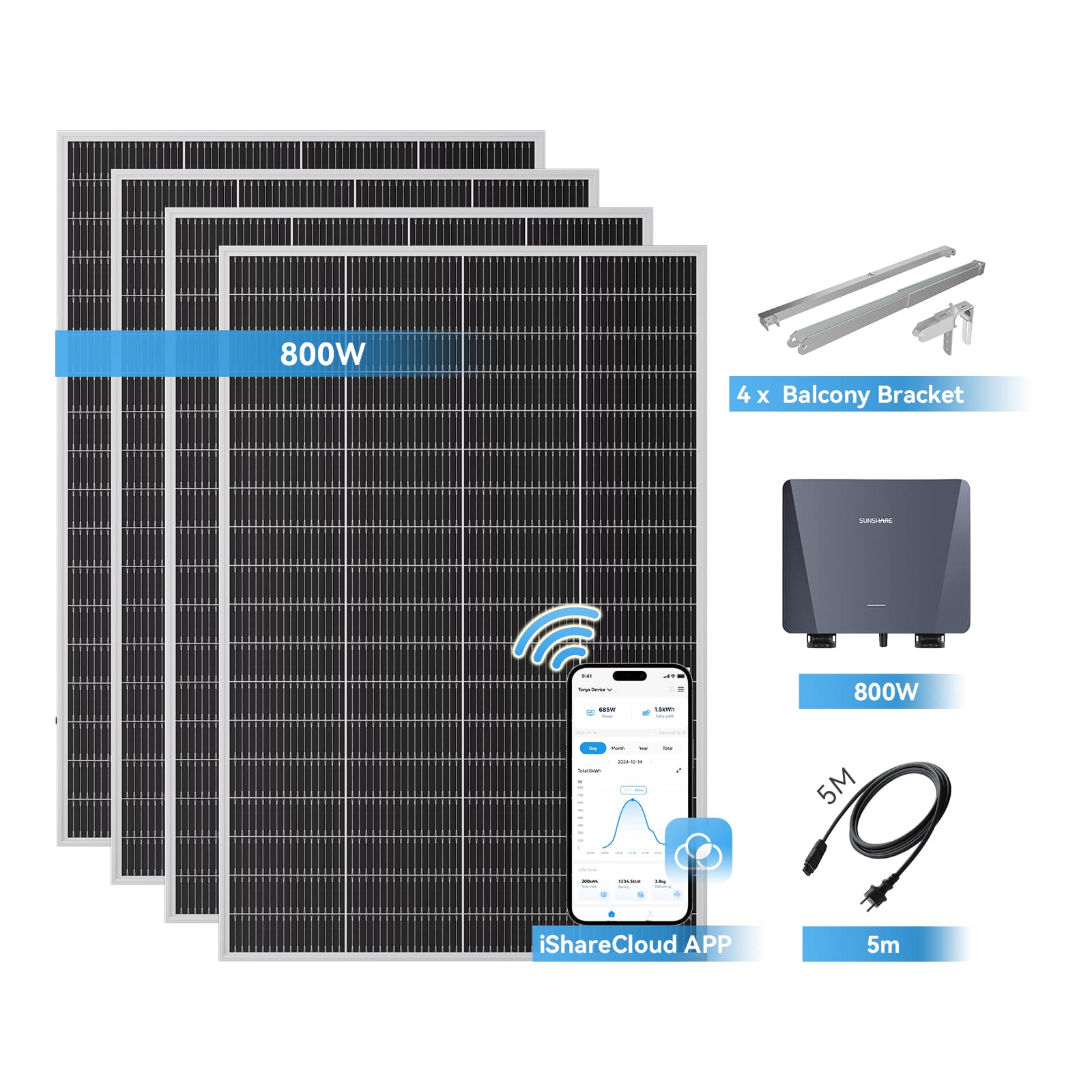

Sunshare's modules are customised with a single module size of only 766 mm and can therefore be adapted to the needs of balconies of different sizes for solar power systems. For small balconies, four 200 W modules can be installed on a balcony length of 3.2 metres to achieve 800 W of power generation. In addition, the optimised design of the system connection allows individual connection so that users can freely combine 1-6 modules according to their needs to maximise their power consumption.

Can I install SUNSHAE solar modules alone?

Sunshare's panels are made of environmentally friendly, lightweight materials that allow for controlled quality of each panel, and when mounted with brackets, can be installed by an adult on their own. We recommend that users of all ages, depending on their strength, invite a family member or friend to help with the installation.

Does the system have to be connected by a tradesman/electrician?

No. The SUNSHARE balcony power station is designed to be completely drill-free and the bracket is pre-assembled so that installation by the average user without specialised personnel is guaranteed. The DIN VDE 0100-551-1:2016-09 standard also stipulates that non-certified end users can also connect the system to a professional socket. The situation is different if a Wieland plug is required, which can only be installed by a qualified electrician.

Ray Lite Balcony Solar System Basic Kit 200W~1200W

Sunshare Solar
Output Calculator

Sunshare Solar Output Calculator

Annual Savings (Glory Series)

Annual PV Output

Extra savings Per Year (Glory vs Solar system without storage)

Annual Savings

Annual Environment Contribution

Want to maximize your savings?

Panel Power

Electricity Price per

Postal Code

Module Orientation

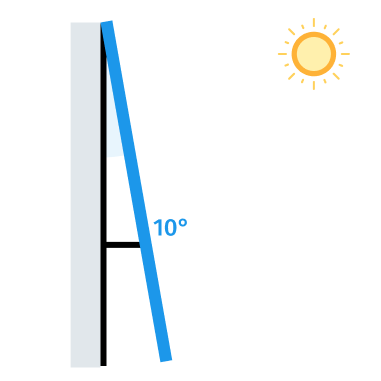

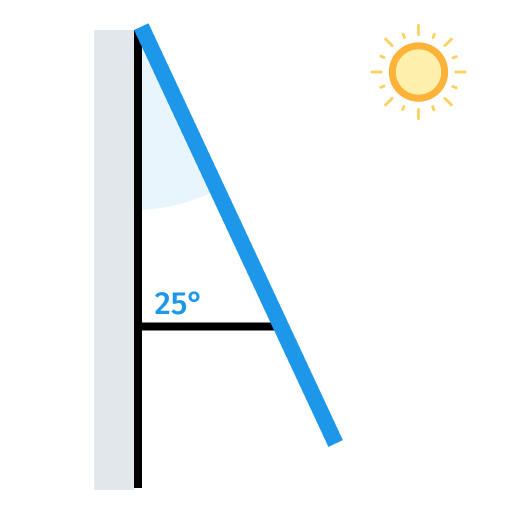

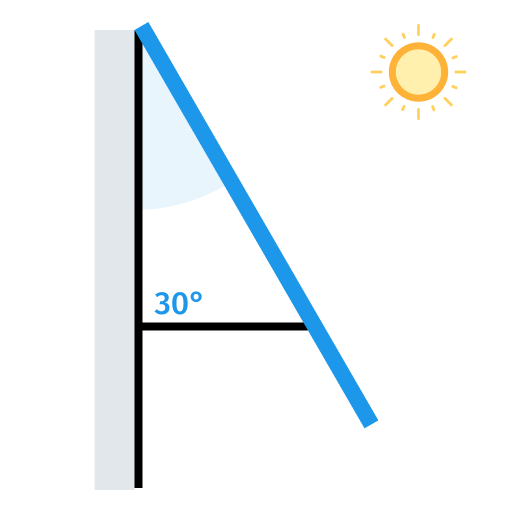

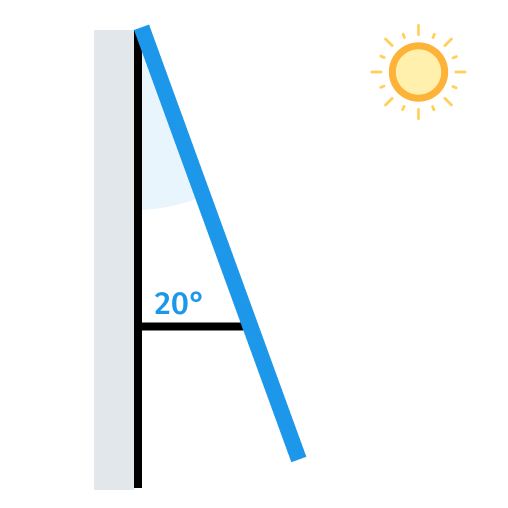

Tilt Angle
